통신부품및솔루션 PLL (Phase Locked Loop) Module

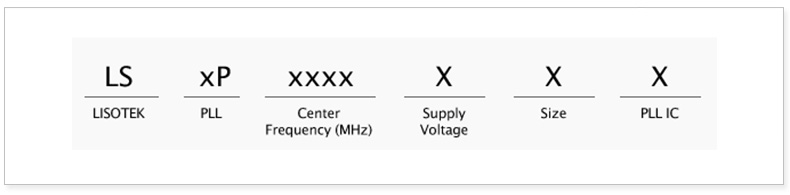

Construction of Part NO.
Specifications
| Supply Voltage | E : 3.0V, F: 3.3V, H : 5.0V |
|---|---|

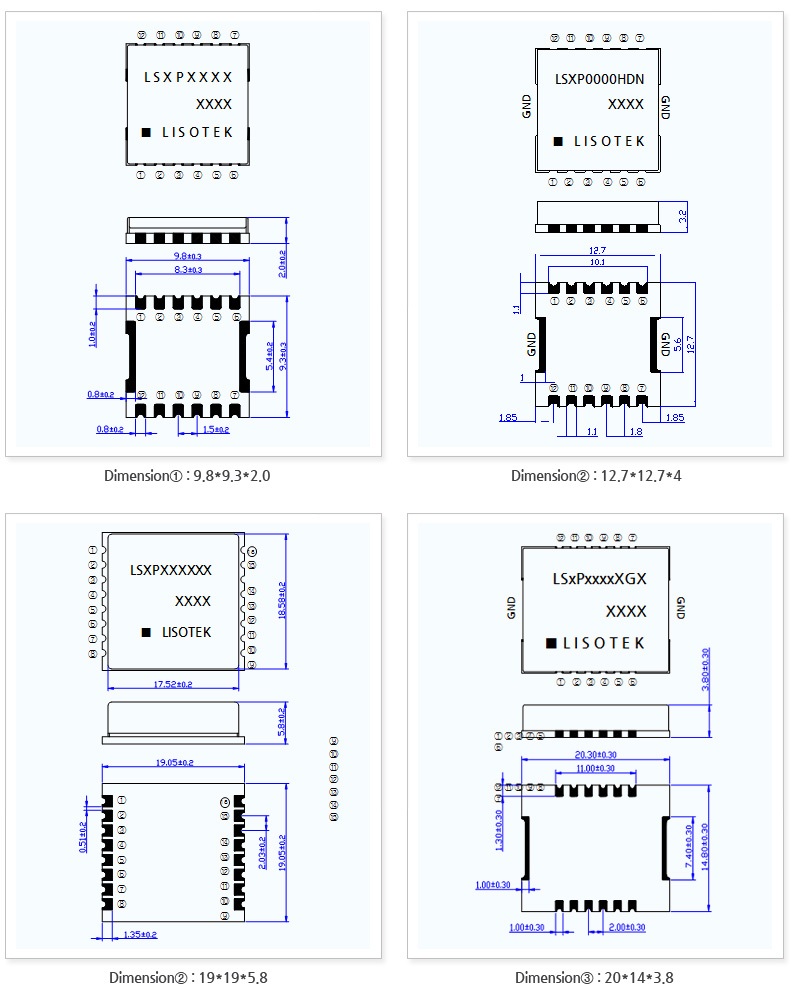

| Size | C : 9.8 x 9.3 x 2.0mm, D: 12.0 X 12.0 X 2.0mm, F : 19.05 x 19.05 x 5.8(3.0)mm, G : 20.3 x 14.8 x 4.0mm |
| PLL IC | A : ADF4113 / 4118 / 4153 |
Specifications
| Part Number | Supply Voltage | Frequency Range | Size |
|---|---|---|---|
| LSPxxxxXXX | 2.7V ~ 5.0V | 300 to 2600MHz | C, F, G |
| LSMPxxxxXXX | 2.7V ~ 5.0V | 300 to 3600MHz | F, G |
| LSTPxxxxXXX | 2.7V ~ 5.0V | 300 to 2600MHz | C, F, G |
| LSLPxxxxXXX (LSLPxxxxXFX) |
2.7V ~ 5.0V | 300 to 2600MHz (10 to 6000MHz) | F, G |
- LSTP : PLL+VCO+Loop Filter+TCXO
- LSMP : PLL+VCO+Loop Filter+Mi-Com.
- LSLP : PLL+VCO+Loop Filter+TCXO+Mi-Com.
- LSP : PLL+VCO+Loop Filter

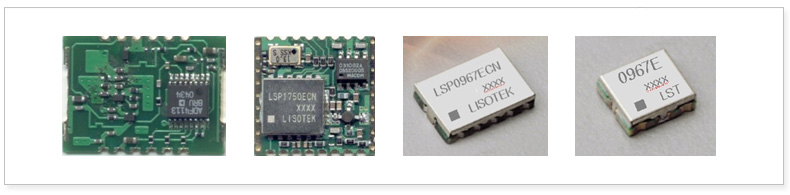

Products List
